Extension Spindles
Extension spindle shaft is manufactured from SS316 Round or Square bar 25/32/35/38 mm . SS 316 Round / Square bar is normally used on standard extension spindles up to 3 meters .
Technical Features
- Machined Components for Durability , No Casted Parts
- Epoxy Powder Coated - For Mild Steel
- Fixing screw and washer of SS 316L
- The components are made of corrosion free materials for long lifetime.
- The conical key adaptor fits standard T-keys
- Support brackets can be supplied to suit adjustable extension spindles.
| Part No | Description | Dimension | Material |
1 |
Spindle Head / Key Adaptor / Spanner Head | 30 x 40 x 100 mm (Any Size) | SS 316L , SS 304 , MS |
2 |
Protection Pipe Holding Plate | 103 mm Dia x 5 mm thickness | SS 316L , SS 304 , MS |
3 |
Spindle Shaft | 25/32/35/38 mm Dia x Any length | SS 316L , SS 304 , MS |
4 |
Spindle Coupling / Adaptor | Round / Square Type | SS 316L , SS 304 , MS |
5 |
Supporting Brackets | 33.4 mm Seamless Pipe x 25 mm Round Bar | SS 316L , SS 304 , MS |
| Options | SS 316L Washer / Teflon Bush / Protection Cover - PVC / HDPE | ||

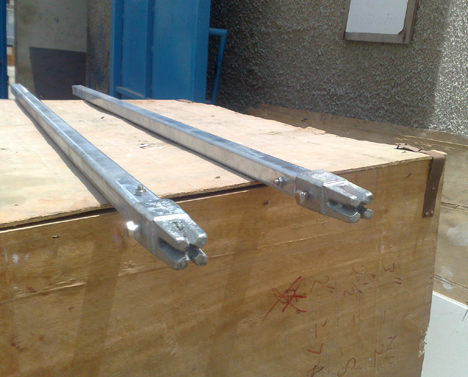

Gallery
Extension Spindles

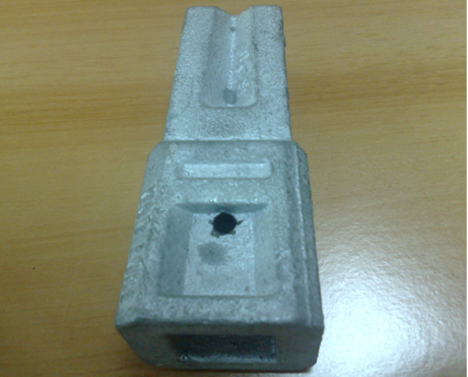

Key and spindle adapter of DI / CI, inside tubes in hot dip galvanized steel and external plastic parts in PVC / HDPE with
high flexibility and impact strength.
No welding on internal parts to ensure high corrosion protection
No welding on internal parts to ensure high corrosion protection
| Part No | Description | Dimension | Material |
1 |
Spindle Head / Key Adaptor / Spanner Head | 30 x 40 x 100 mm (Any Size) | DI Casting (Epoxy Coating) |
2 |
Key | Round / Square Type | DI / CI |
3 |
Spindle Shaft | 25 mm Dia x Any length | SS 316L , SS 304 , MS |
4 |
Spring Pin | Standard | SS 316L |
5 |
Retaining Screw | Standard | SS 316L |
6 |
Supporting Brackets | 33.4 mm Seamless Pipe x 25 mm Round Bar | SS 316L , SS 304 , MS |
| Options | Epoxy Coating / SS 316L Washer / Teflon Bush / Protection Cover - PVC / HDPE | ||
Gallery

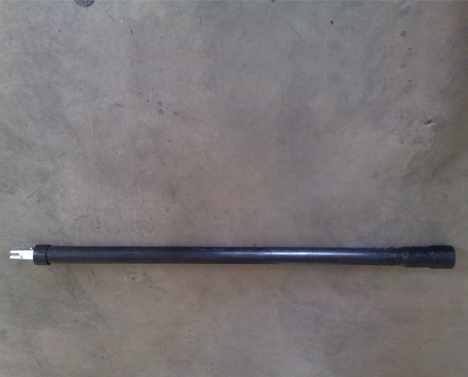

Adjustable Extension Spindles
Key adaptor and spindle adaptor of DI / CI/ SS , inside tubes in galvanized steel and external covers n PVC / HDPE with
high flexibility and impact strength.
No welding on internal parts to ensure high corrosion protection
No welding on internal parts to ensure high corrosion protection
Technical Features
| Part No | Description | Dimension | Material |
1 |
Key Adaptor | 30 x 40 x 100 mm (Any Size) | SS316 L / CI /DI Casting |
2 |
Top Adaptor | 103 mm Dia x 5mm Thickness | SS 316 L / MS |
3 |
Upper Inner Tube | Any Size | SS 316 L |
4 |
Upper Protection Tube | Any Size | SS 316 L |
5 |
Centre Sleeve | Any Size | SS 316 L |
6 |
Lock Spring | Any Size | SS 316L |
7 |
Lower Inner Tube | Any Size | SS 316 L |
8 |
Lower Protection Tube | Any Size | PVC / HDPE |
9 |
Stop Ring | Any Size | SS 316L |
10 |
Spindle Adaptor | Any Size | SS 316 L |
11 |
Spindle Cover Top | Any Size | SS 316 L |
12 |
Bottom Cover | Any Size | PVC /HDPE |
Gallery
